Answer ALL questions. (Total 100 marks)

Question 1

Interpret Figures Q1.1 to Q1.3 showing a hip roof. Apply measurement techniques to take off quantities for the following works:

Specifications:

• Roof tiles shall be 365 x 210 clay interlocking tiles with matching ridge, hip and eave tiles and fixed to 50 x 40 mm timber battens @ 300mm c/c with galvanized nails.
• Allow 75 mm for roof tiles projection at eaves beyond fascia board.
• Special tiles shall be required at ridge, hip and eaves of roof. Ridge and hip tiles shall be half round 275 mm diameter laid on cement & sand mortar (1:3).
• Decking and underlays shall comprise of two layers of bitumen felt overall 15 mm thick, 50 mm thick fibre glass roof insulation with double sided sisalation foil 450 and laid on fabric mesh 3325 to underside of roof covering.
• Hip pitched roof is laid at 30 degrees slope.
• All roof timber shall be keruing preserved timber.
• Ridge board shall be 75 x 275 mm deep.
• Hip rafters shall be 75 x 200 mm thick
• All other rafters shall be 50 x 150 mm thick @ 600 mm c/c.
• Fascia boards shall be of 25 mm thick plywood. The depth of Fascia board is 350 mm deep and butt jointed.
• Soffit boards at eaves shall be of 25 mm thick plasterboard and exposed surfaces shall be painted with two coats of emulsion paint.
• Timber bearers (Vertical and horizontal of same length) shall each be 75 x 75 mm square cross section.
• All other structural timber shall be scarfed jointed where required.
• Wall thickness is 225 mm.
• All dimensions are in millimeters unless otherwise indicated.
• Wall plates shall be 150 x 75 mm thick.
• Ceiling joists shall be 75 x 250 mm thick spaced at 600 mm c/c.
• The first and last rafter and ceiling joist shall be placed at 600 mm from the fascia boards.

(a) Roof coverings, associate decking and special tiles; and

(10 marks)

(b) Structural timbers as specified including eave boards.

(15 marks)

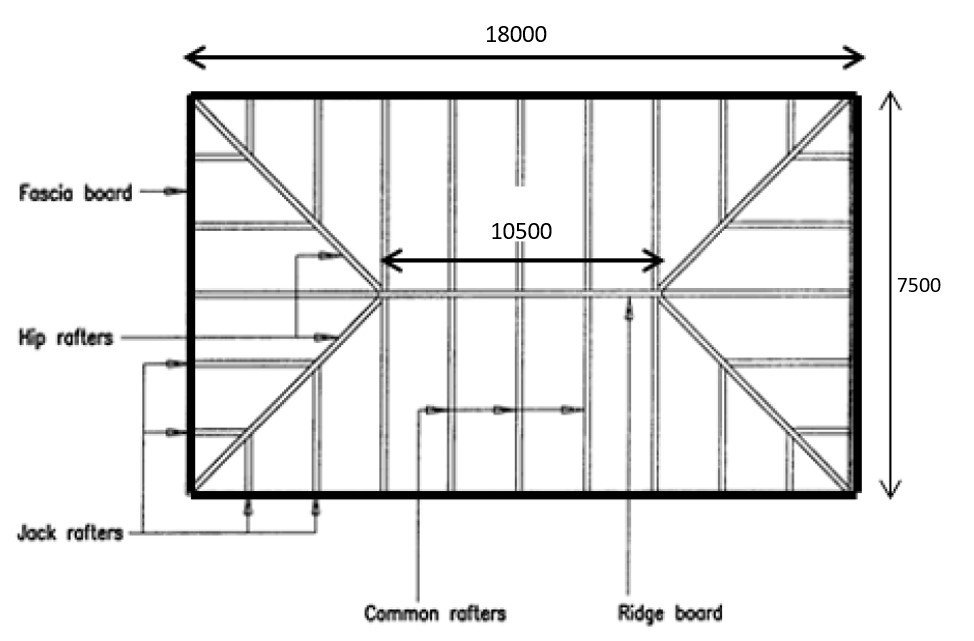

Figure Q1.1: Hip Roof Plan

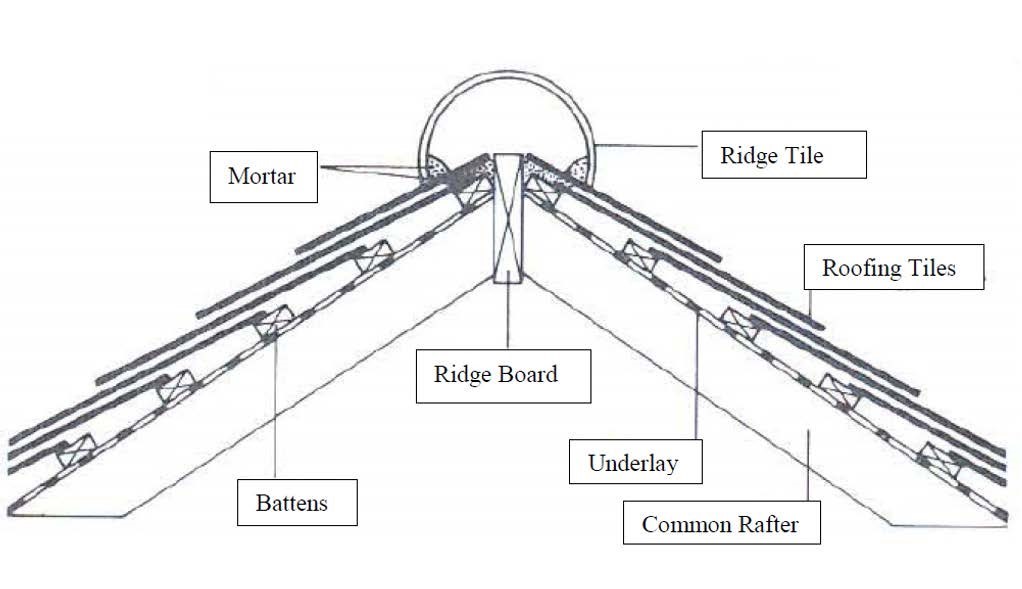

Figure Q1.2: Roof Section

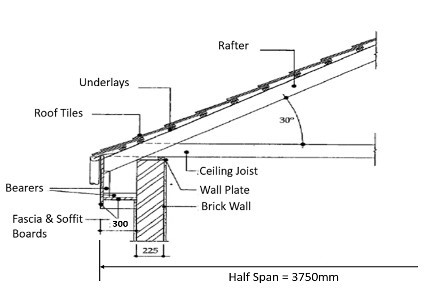

Figure Q1.3: Roof Details at Eaves

Question 2

Interpret Figures Q2.1 to Q2.6 showing the floor plan and sections of a toilet. Apply measurement techniques to take off quantities for the floor and wall finishes; internal block wall including doors and door frames.

(15 marks)

Specifications:

• Ceramic floor tiles shall be 300 x 300 x 12 mm thick laid on 40 mm thick cement & sand (1:3) backing screed.
• Ceramic wall tiles (internal only) shall be 300 x 300 x 12 mm thick laid on 20 mm thick cement & sand (1:3) backing screed. Wall tiles shall be laid full height.
• Plan size of squatting pan is approximately 500 x 400 mm.
• Doors shall be of 30 mm thick UPVC flush doors, 900 x 2187 mm and 729 x 2187 mm high hung on UPVC frame 33.5 mm thick x 100 mm wide complete with all ironmongeries.
• Internal block wall shall be 75 mm thick (full height) laid stretcher bond and bedded and jointed in cement and sand mortar (1:3).
• Ceiling finishes shall be 20 mm thick cement and sand plaster (1:3) in two coats and painted with one undercoat & two finishing coats of emulsion paint.
• External wall shall be 100 mm thick.

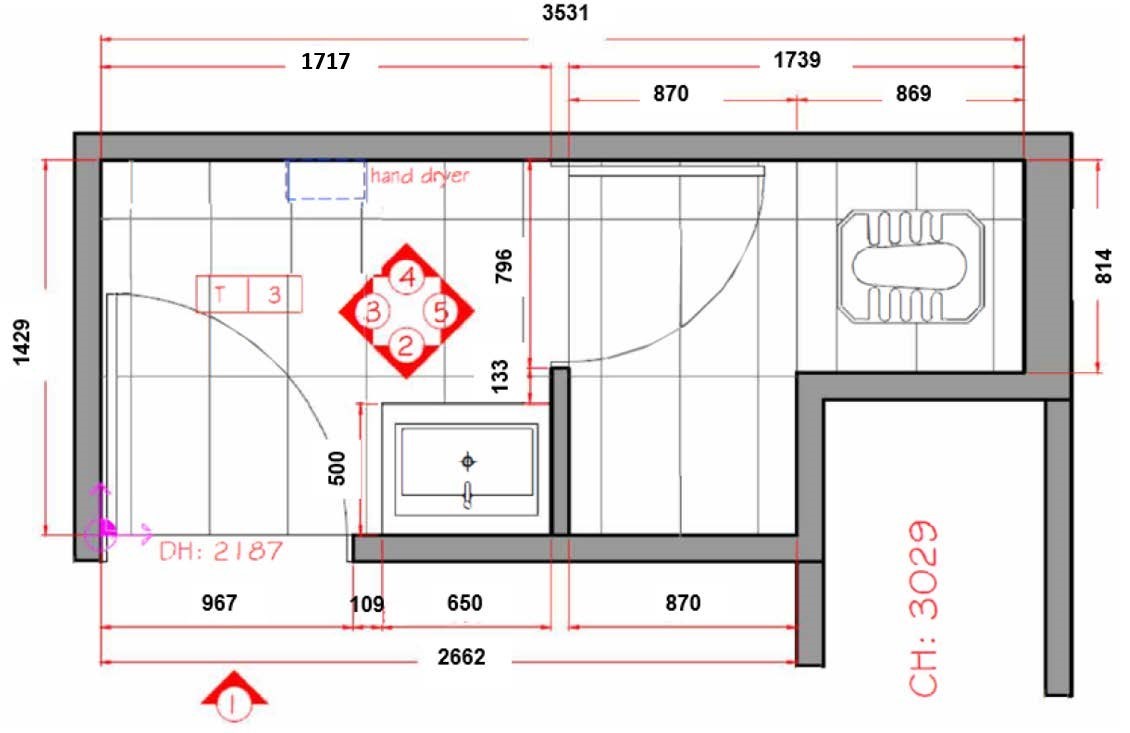

Figure Q2.1: Toilet Plan

Figure Q2.2: Elevation 1

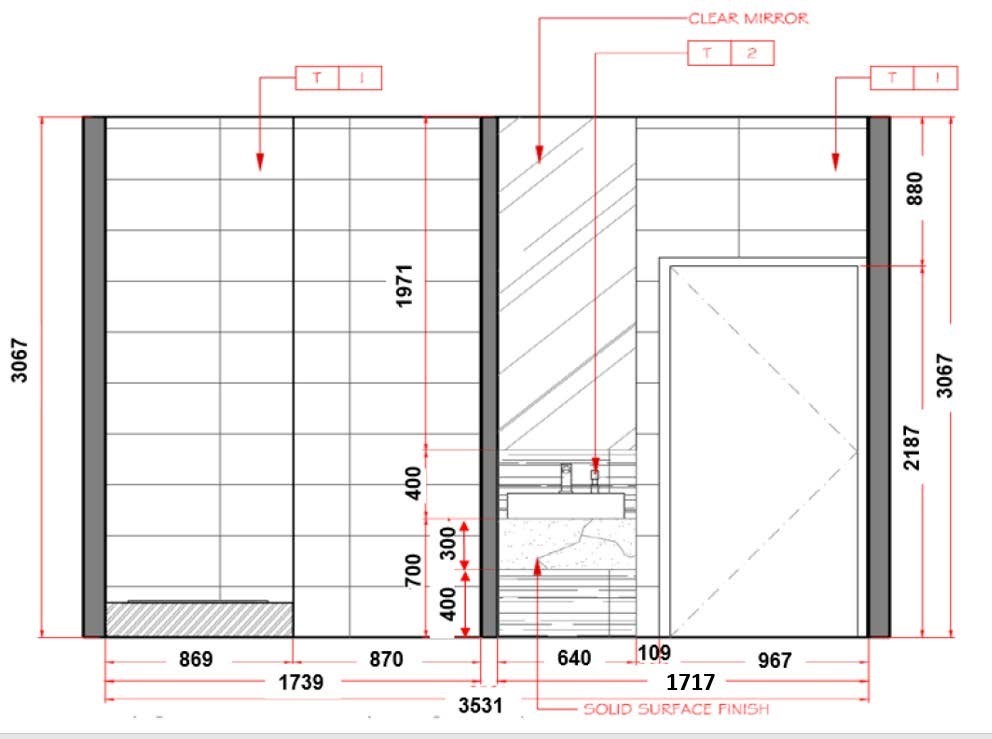

Figure Q2.3: Section 2-2

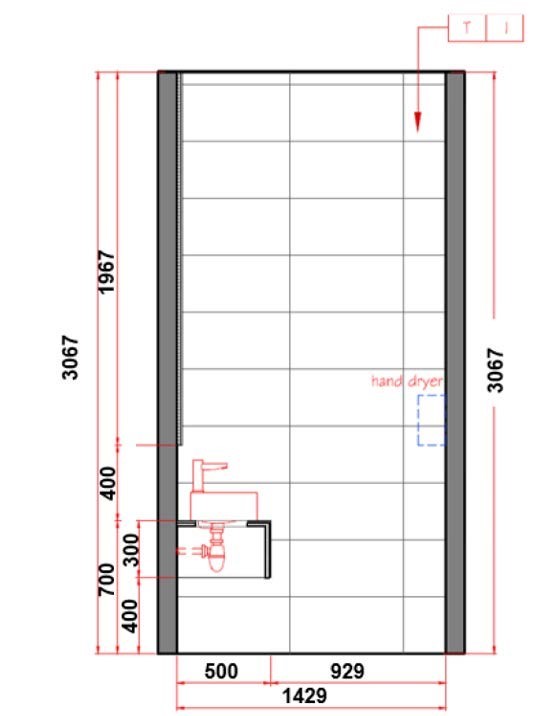

Figure Q2.4: Section 3-3

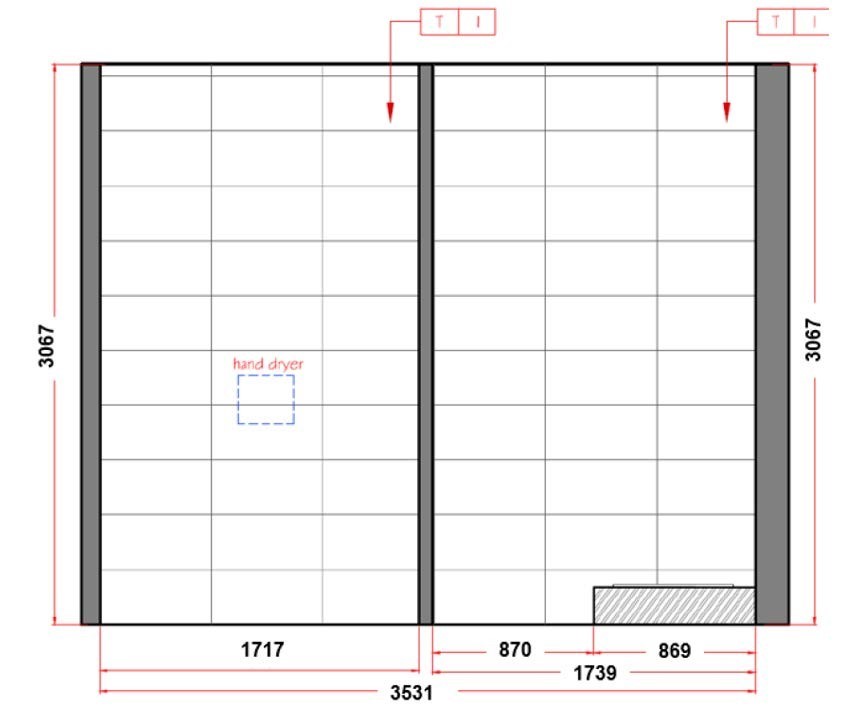

Figure Q2.5: Section 4-4

Figure Q2.6: Section 5-5

Question 3

Interpret Figures Q3.1 and Q3.2 found in the Appendix and apply measurement technique to take-off quantity of the following ACMV works under the following headings:

(a) Air Conditioning Ductwork

(14 marks)

(b) Air Conditioning Accessories and Grilles

(4 marks)

(c) Mechanical Ventilation Ductwork

(3 marks)

(d) Mechanical Ventilation Accessories and Grilles

(4 marks)

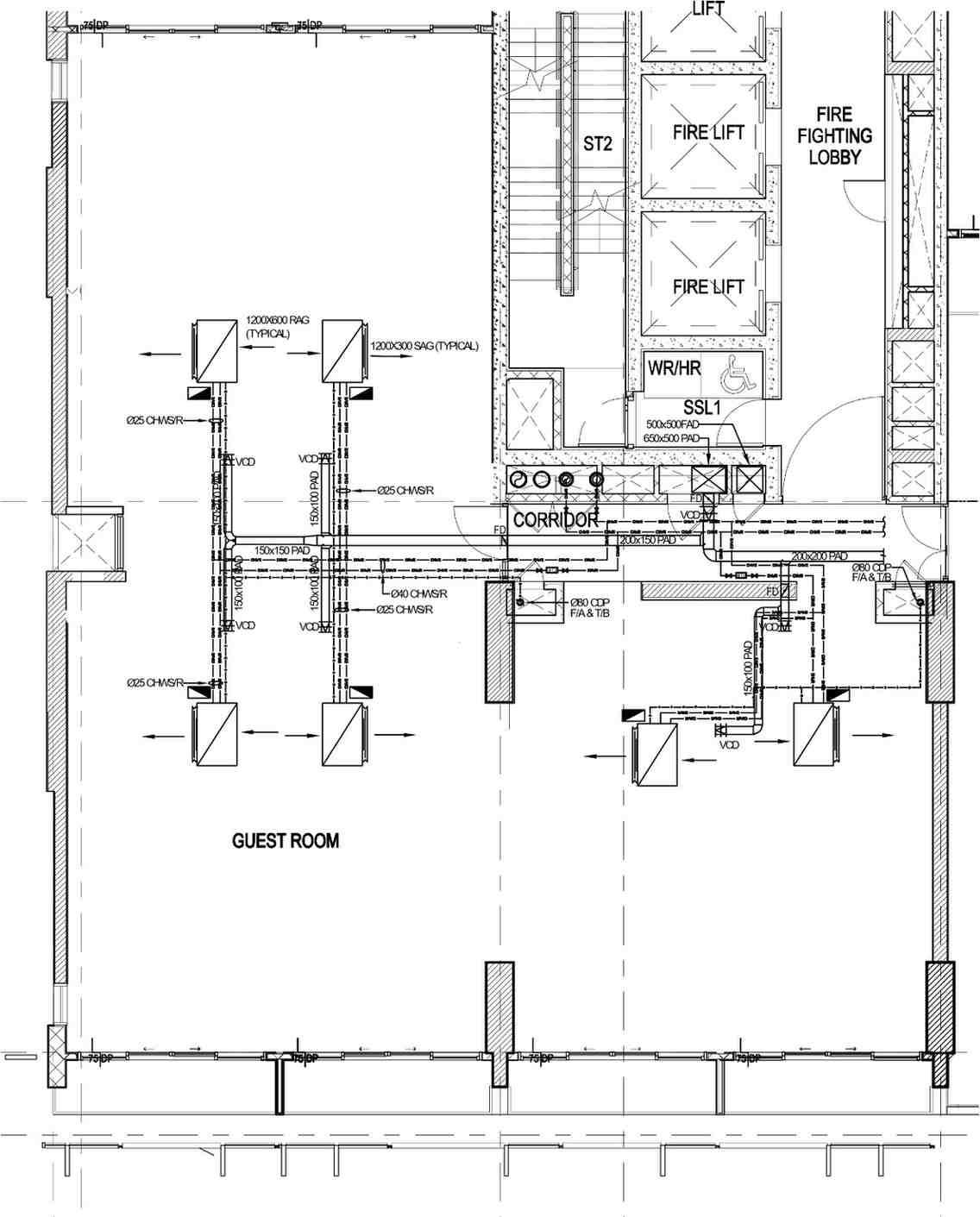

Figure Q3.1 (Guest Rooms)

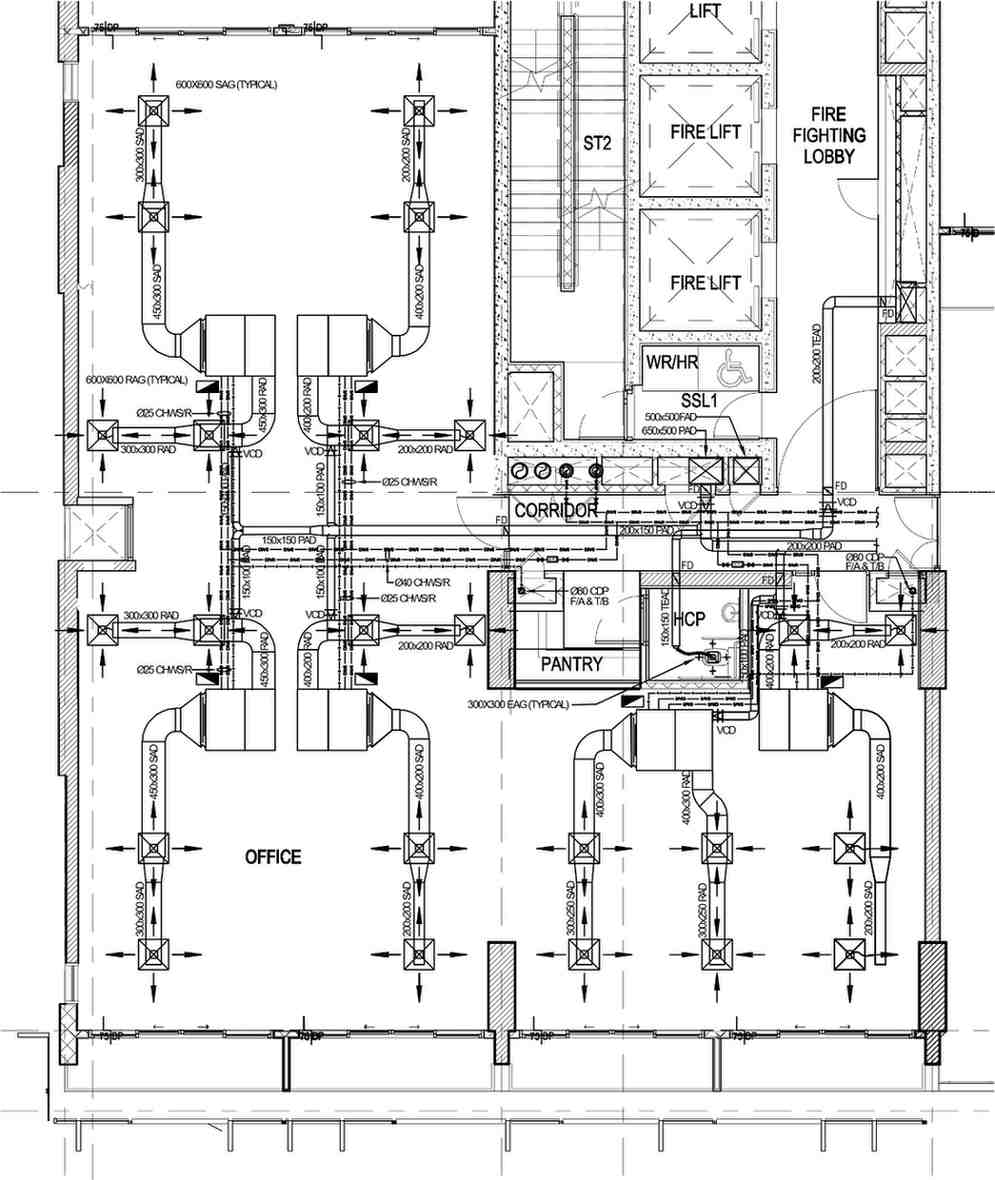

Figure Q3.2 (Office)

Question 4

The show flat for a new residential development is set to launch in two weeks. However, the power supply from the local utility provider is not ready and will require an additional two months to lay the electrical cable from the nearest substation. As a result, the show flat contractor has been instructed by the Engineer to install a temporary diesel generator to provide power for the next two months until the permanent power supply is available.

The contractor has submitted a lump-sum quotation with the cost breakdown as shown in Table Q4.

Table Q4: Cost Breakdown for Providing Diesel Generator

As the project quantity surveyor, please evaluate the quotation and provide your professional advice to the Engineer. Use CEMS (Construction Electronic Measurement Standard) or SMM (Standard Method of Measurement) as the basis for your cost assessment.

(15 marks)

Question 5

A shopping mall owner plans to convert several retail units into restaurants with kitchens. The facilities manager has been tasked with preparing the necessary documentation to invite quotations from three contractors for the required works.

Prepare a detailed cost breakdown for the following Mechanical & Electrical (M&E) works to be installed or upgraded for the restaurant conversion:

(a) Plumbing and Sanitary Works

(8 marks)

(b) Air Conditioning and Mechanical Ventilation Works

(4 marks)

(c) Electrical Works

(8 marks)
