QSM301 Construction Measurement (3 of 4) Advanced Civil & Structural Works End-of-Course Assessment 2026, Singapore

QSM301 End-of-Course Assessment

Instructions To Students:

1. This End-of-Course Assessment paper comprises SEVENTEEN (17) pages (including the cover page).
2. You are to include the following particulars in your submission: Course Code, Title of the ECA, SUSS PI No., Your Name, and Submission Date.
3. Late submission will be subjected to the marks deduction scheme. Please refer to the Student Handbook for details.

Important Note

ECA Submission Deadline: Friday, 10 April 2026, 12 Noon

Answer ALL questions. (Total 100 marks)

Question 1

Interpret Figures Q1.1 to Q1.4, Tables Q1.1 and Q1.2 and apply measurement techniques to:

Specification Notes for Pile Caps:

• Excavation work shall commence from EGL.
• Reinforce concrete shall be of grade 35.
• There is a layer of 75 mm thick grade 15 lean concrete below each pile cap.
• Formwork shall be of sawn timber.
• First storey slab and ground beams are NOT to be measured.
• Concrete cover shall be 50 mm thick.
• Laps for binders shall be 1250 mm (3N1) and 450 mm (2L1 & 2N1).

Specification Notes for Bored Piles:

• Boring of pile holes shall commence for the existing ground level (EGL).
• The estimated driven depth for the piles is 27.00 m. Piles are required to be cut off at the required cut off level as indicated.
• Reinforced concrete shall be of grade 35. Concrete cover shall be 75 mm thick.
• Working load test shall be executed on one 1800 mm diameter piles up to 1.5 times the designed working load of the pile (1200t) and one 700 mm diameter piles (300t).
• Pile integrity test is to be executed on three selected piles.
• All empty bores shall be fill up with imported sand.
• Pile reinforcement shall be as follows:

(a) Take-off quantities for excavation, concrete and formwork for all the pile caps. (15 marks)

(b) Take off quantities for the reinforcement work. (15 marks)

(c) Take off quantities for the bored piles. (15 marks)

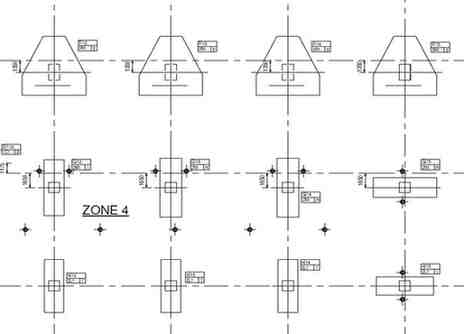

Figure Q1.1: Pile Caps Layout Plan (NTS)

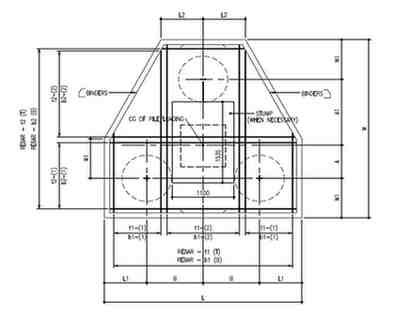

Figure Q1.2: Typical Pile Cap Details – Plan

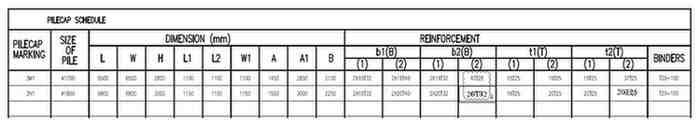

Table Q1.1: Pile Cap Details

Note: Typical main bar arrangement is U – shape (top/bottom)

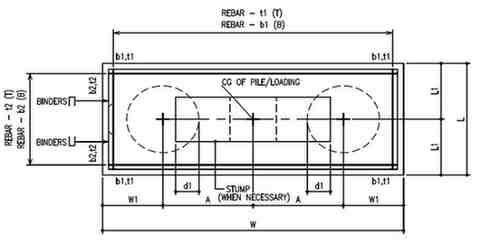

Figure Q1.3: Typical Pile Cap Details – Plan

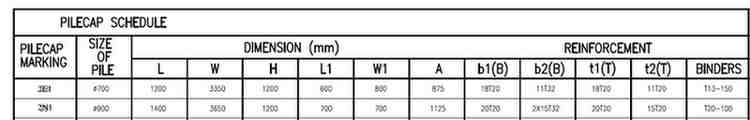

Table Q1.2: Pile Cap Details

Note: Typical main bar arrangement is U – shape (top/bottom)

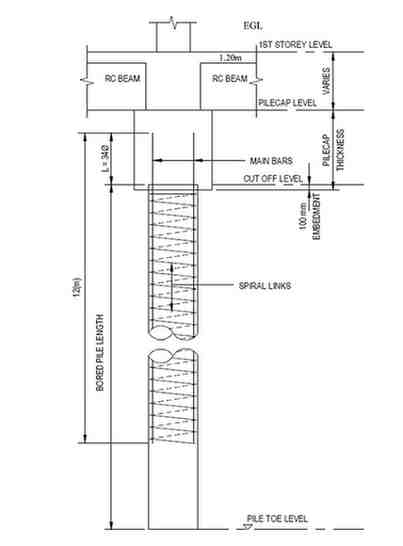

Figure Q1.4: Bored Pile Details

Question 2

Figures Q2.1 to Q2.3 shows the construction of a deep shaft. The slab is cast in-situ and the rest of precast components.

Specification Notes:

• Excavation works shall commence from the top level as indicated in the drawings.
• Precast concrete components shall be in grade 40.
• Formwork shall be sawn timber.
• Concrete cover shall be 50 mm thick.
• Holes in shaft wall for steel pipe penetration shall be cut on site during installation.
• All pipes are NOT to be measured.

(a) Identify and describe the relevant SMM clauses required for measuring the precast concrete work. (5 marks)

(b) Take-off quantities for the shaft.(10 marks)

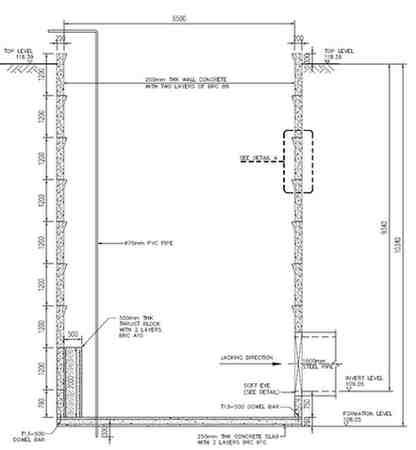

Figure Q2.1: Precast Concrete Shaft – Section

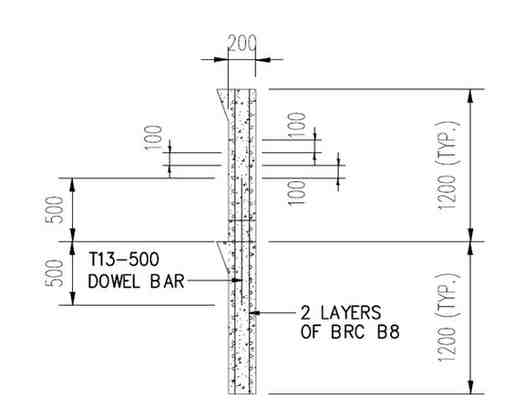

Figure Q2.2: Precast Concrete Shaft – Joint Details

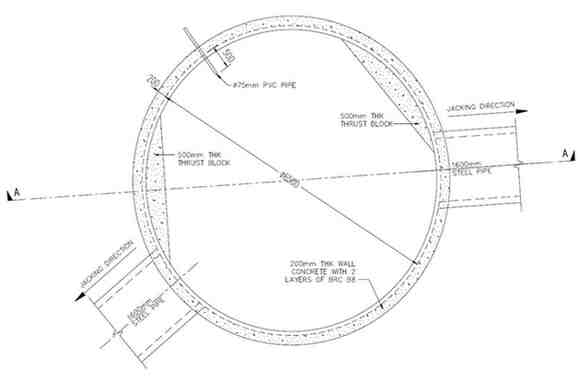

Figure Q2.3: Precast Concrete Shaft – Plan

Question 3

Identify the scope and interpret the Figures Q3.1 to Q3.5 and Table Q3.1.

Specification notes:

• Reinforced concrete shall be of grade 30
• Formwork shall be of wrot timber
• Stair waist shall be 200 mm thick
• Overall depth of stairs from nosing to soffit is 350 mm
• Width of stairs is 1400 mm wide. One side of the stair is cast against the wall.
• Landing slabs shall be 350 mm thick x 3400 mm long.
• Strutting height for soffit of landing slab is 3425 mm
• Bends for landing beam top main bars shall be 600 mm long and bottom main bars shall be 300 mm long
• Concrete cover shall be 30 mm thick Walls/Columns shall be 200 mm thick.

Prepare a take-off list with the corresponding SMM clauses and the units of measurement for measuring the stairs, suspended beams and landing slab including reinforcement. (10 marks)

(a) Apply measurement techniques to take off quantities for the reinforced concrete and formwork to the stairs, landing and suspended beams.

(10 marks)

(b) Take-off quantities for the staircase, landing and beam reinforcement. (Note: Assumptions made for calculating the length of the bars must be clearly indicated).

(15 marks)

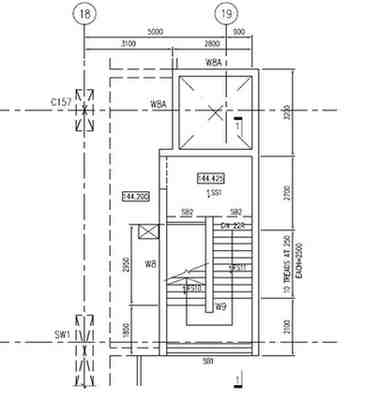

Figure Q3.1: Plan of Stair at 6th Storey/Roof Level (NTS)

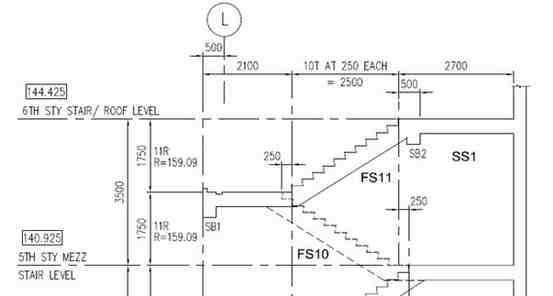

Figure Q3.2: Section 1-1 (NTS)

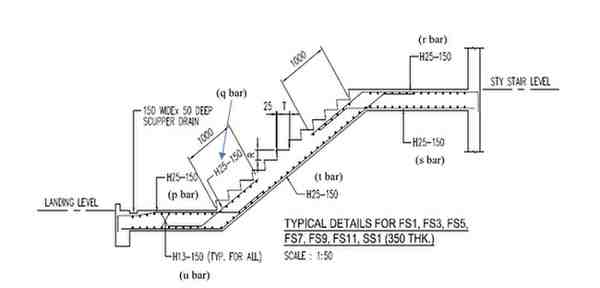

Figure Q3.3: Stair Details (NTS)

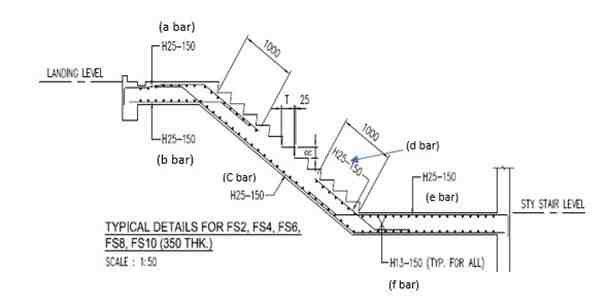

Figure Q3.4: Stair Details (NTS)

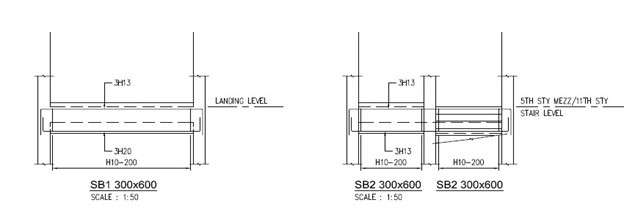

Figure Q3.5: Beam Details (NTS)

Table Q3.1: Reinforcement Details for Staircase/Landing

—– END OF ECA PAPER —–
