FMT101: Demonstrate your understanding of the water supply system in an office building by accounting: Building Services Assignment, SUSS, Singapore

Question 1

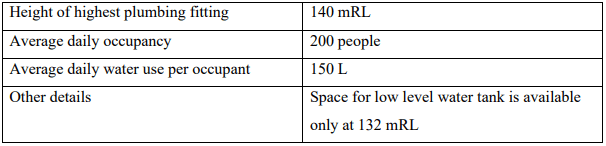

You are to design the water supply network to a tall office building with the details as shown:

Demonstrate your understanding of the water supply system in an office building by accounting for all of the following factors in your design:

• Mode of water supply
• Details of water tanks to be used if applicable
• The valves to be installed

Question 2

You have been tasked with the design of the fire hydrant and riser main systems of a new commercial building. The details of the building are as follows:

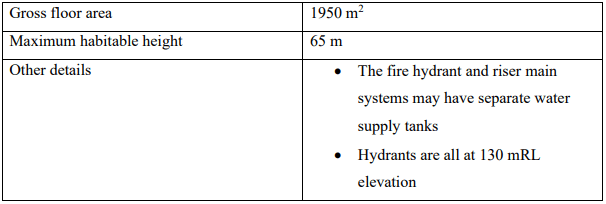

Commercial Building Details

(a) In your design of the riser main system, determine all of the following:

• Number of hydrants (s) to be installed
• Flow rate and pressure to be supplied by each hydrant
• Size of the water tank supplying the hydrant

(b) In your design of the riser main system, determine all of the following:

• Type of riser main
• Size of riser main
• Type of breeching inlet
• Flow rate and pressure to be supplied to riser main
• The size of the water tank supplies the riser’s main
