Assignment Details:

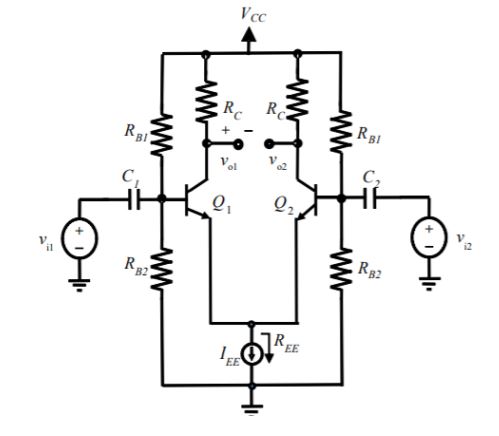

Here vi1 and vi2 represent the differential inputs, and vo1 and vo2 represent the differential outputs. Assume all the capacitors have infinite values.
(a) Determine the Q-points for the transistors.
(b) Determine the differential-mode gains, common-mode gains for the cases of single-ended and differential outputs, respectively.
Stuck with a lot of homework assignments and feeling stressed ? Take professional academic assistance & Get 100% Plagiarism free papers
(c) Determine the common-mode rejection ratios (CMRRs) for the cases of single-ended and differential outputs. respectively. In addition, discuss the effect of variation of REE on the CMRRs.
(d) Determine the differential-mode and common-mode input resistances.
(e) Determine differential and single-ended output resistance.
