EGE202 Application Programming Project 2 Assignment : Advanced Drawing and Image Editing Tool Using C# Windows Forms, Singapore

Project 2: Doodle Application (Enhancement from Lab 7)

Submission Requirements: (Compulsory for Each Student)

1. In the working folder !EGE202-24S2, create a subfolder Testing for Project 02 development.
2. Under the File menu, click New Project or use the New Project button to create a new project. Alternatively, use the Create New Project link in the Get Started popup dialog.
3. From the pop-up dialog, select “C#” for the Language filter, “Windows” for the Platform filter and “Desktop” for the Project type filter.
4. Then choose Windows Forms App (.Net Framework) and click the Next button.
5. Type the name of your new project as Doodle_ and put the project in your working folder.
6. Do not tick on the checkbox of [  Place solution and project in the same directory ].
7. Click the Create button to start your project.
8. In the Properties window of the Form control, change the TopMost property of the Form1 to ‘True’ and the StartPosition property to CenterScreen.
9. The default Form file name and class name is always Form1. Let’s change and rename it to MainForm_.
10. From the Toolbar, drag in 1 MenuStrip control into the Form window. Add the About and and on separate menu items under About top menu.
11. Double click the to implement ) ToolStripMenuItem_Click(. . .). Add the following codes.

private void gUIDToolStripMenuItem_Click(object sender, EventArgs e)
{
Assembly assembly = Assembly.GetExecutingAssembly();
var attribute =(GuidAttribute)assembly.GetCustomAttributes(typeof(GuidAttribute), true)[0];
Clipboard.SetText(attribute.Value.ToString());
}

Note: You need to add the following namespace for the above codes to work.
using System.Reflection;
using System.Runtime.InteropServices;

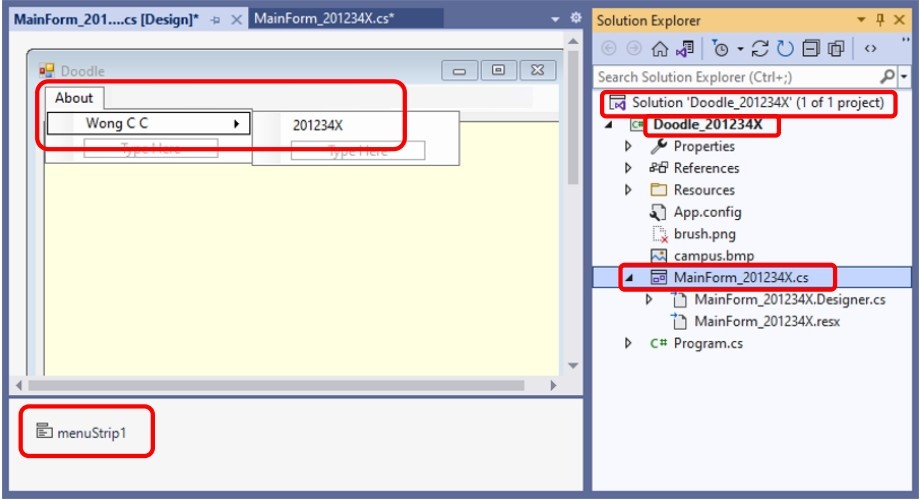

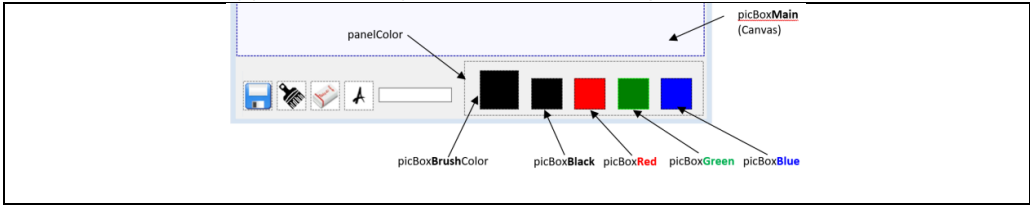

Figure 1

Project Requirements

Other Assessment Criteria:

Mandatory Points :

Note: It is the student’s responsibility to follow instructed submission methods and to ensure projects downloaded from Brightspace are executable on another computer.

Project 2 – Doodle Application Test Sequence

0. Miscellaneous Features & Status (Task F) – 4 marks

• Click on all Tools Icon control ⃝ Brush ⃝ Text ⃝ Eraser ⃝ Clear ⃝ Save ⃝ Load
• Show FULL tool icon image ⃝ Brush ⃝ Text ⃝ Eraser ⃝ Clear ⃝ Save ⃝ Load

1. DRAW Mode (Task A) – 12 marks

• Non-White light color for Canvas  ⃝
• Can’t draw on canvas unless Brush tool is selected   ⃝
• Click on Brush tool icon  ⃝
• Click on 4 new colour picture Box (palettes)
• The picBoxBrushColor responding to palette’s              color ⃝ Color5 ⃝ Color6 ⃝ Color7 ⃝ Color8
• Set specific Brush size and color then draw a line
  ⃝     10 pts ⃝   Color5
  ⃝     30 pts ⃝   Color6
  ⃝     50 pts ⃝   Color7
  ⃝     70 pts ⃝   Color8
• Click on Clear tool icon

2. TEXT Mode (Task B) – 12 marks

• Click on Text tool icon ⃝
• “Doodle Painting” preset in textbox ⃝
• Set text font size to 10 pts ⃝ 10 pts
• Show 4 different text color ⃝ Color1 ⃝ Color2 ⃝ Color3 ⃝ Color4
• Set text font size to 30 pts ⃝ 30 pts
• Show 4 different Text font type ⃝ Font 1 ⃝ Font 2 ⃝ Font 3 ⃝ Font 4
•  No overlapping for all texts ⃝
•  Click on Brush tool icon set size to 10 pts to draw  ⃝ 10 pts ⃝ 

3. SIZE change (Brush/Eraser) (Task C) – 6 marks

• Click on Brush tool, set Brush size to 50 pts ⃝ 50 pts
• Draw a filled square ⃝
• Click on Eraser tool icon ⃝
• To eraser with 10pts, 30pts & 50pts g ⃝ 10 pts ⃝ 20 pts ⃝ 50 pts

4. LOAD image (Task D) – 10 marks

• Click on Load tool icon ⃝
• Load a fixed “NYP Campus” BMP image ⃝ BMP
• Load another PNG image on BMP image ⃝ PNG
• Super-impose PNG image with the BMP ⃝
• Draw on & Text on the super-image image ⃝ draw ⃝ text

5. Miscellaneous (Task E) – 6 marks

• Save the super-impose image as gif format ⃝ GIF
• Click on Clear tool icon to clear the canvas ⃝
• Reloaded the saved image ⃝
