Design and Build Space and Facilities not limited to Cable Containment, Power Provisions, Grounding Provisions, Fiber Termination Points: Specialist Diploma in M&E Coordination Assignment, BCCA, Singapore

1) Design and Build Space and Facilities not limited to Cable Containment, Power Provisions, Grounding Provisions, Fibre Termination Points

2) Preparation of Cable Containment Shop Drawing, Request for Information.

Project: Proposed construction of 6-story senior care and nursing home building.

Introduction

This GROUP assignment (4 to 5 persons per group) involves a case study of a 6-story integrated single block providing senior care, lodging, and nursing needs. This project, abbreviated as SCNH (Senior Care & Nursing Home), costs about S$22 million with a project duration of 18 months. An artist’s impression of the building is shown below.

Figure 1: SCNH, a 6-story single block for Senior Care and Nursing

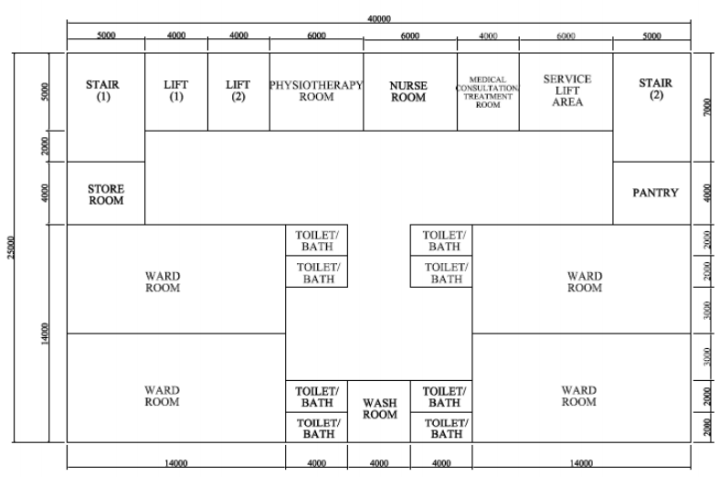

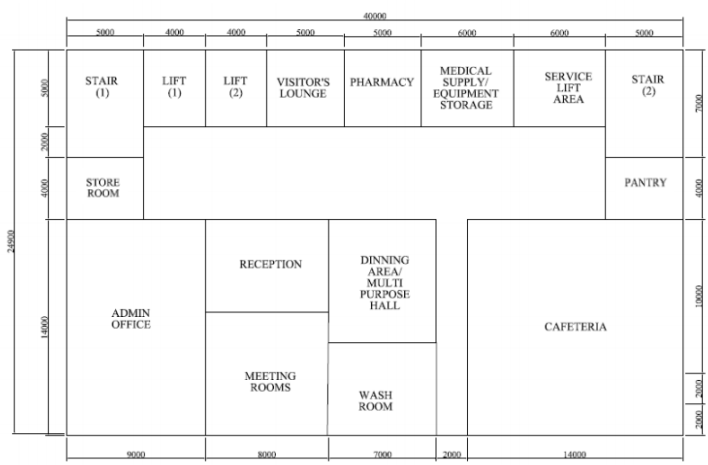

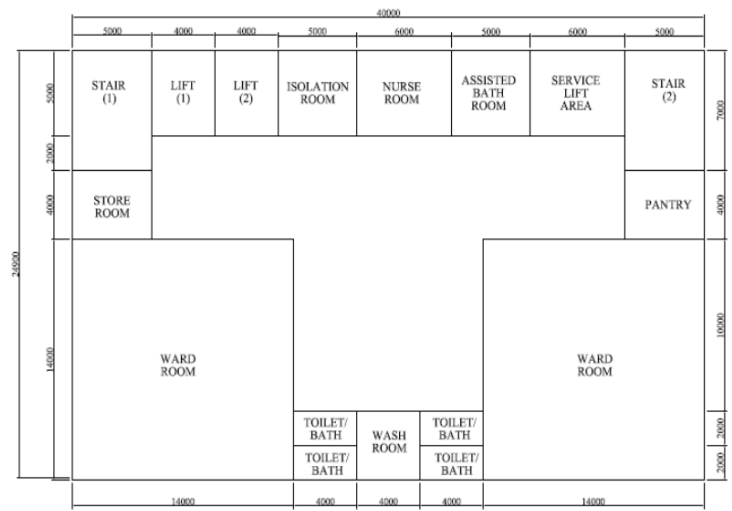

Figure 2, Figure 3, and Figure 4 show the floor plan of the respective story
